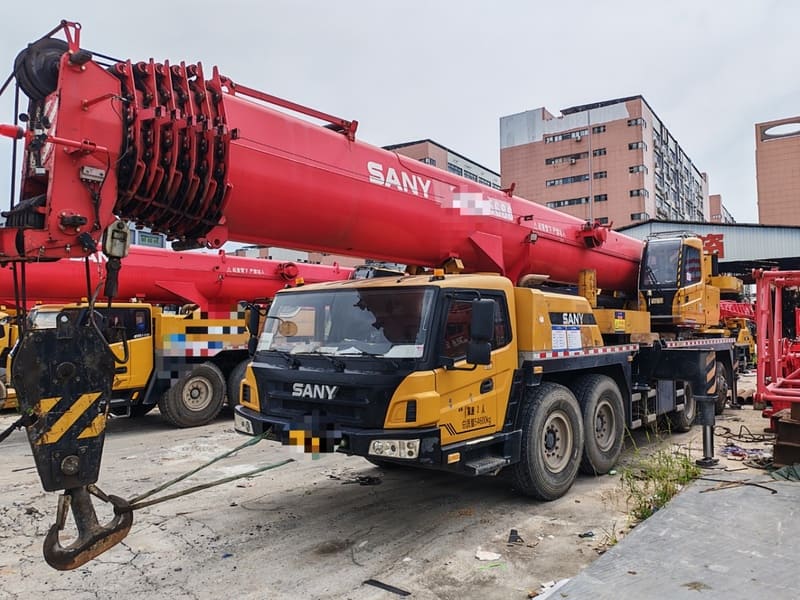

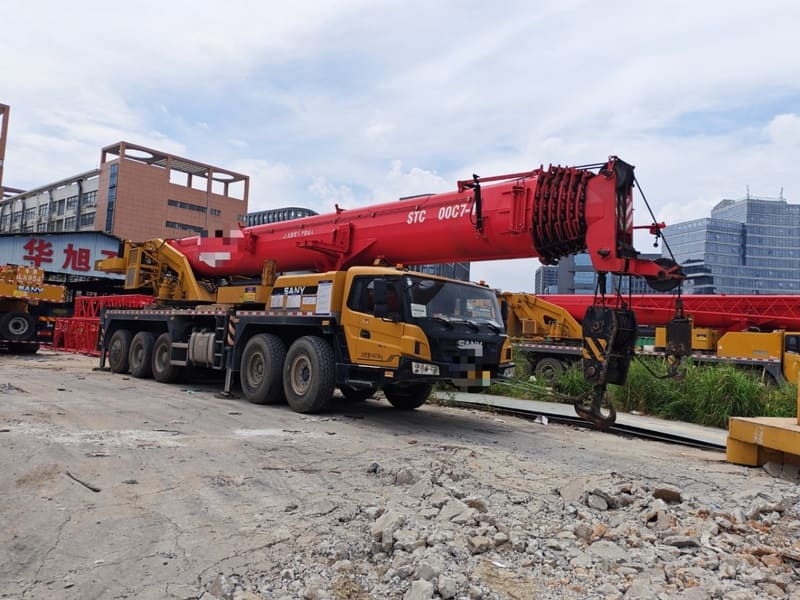

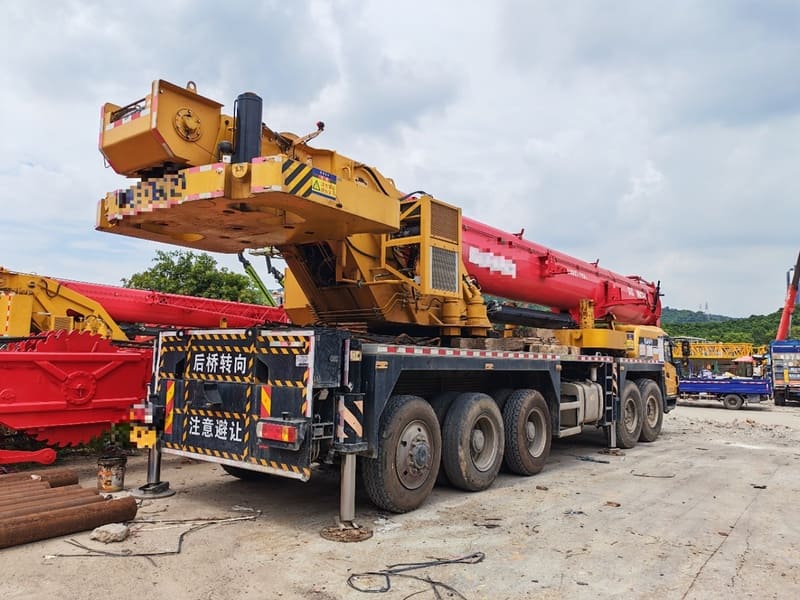

Used Truck Crane SANY STC1000C7-1

SANY STC1000C7-1 Truck Crane is a 100-ton-class flagship hydraulic telescopic truck crane engineered to deliver ultra-high vertical reach, exceptional structural counter-balancing, and heavy mechanical load moments. It is widely deployed across large-scale wind power auxiliary construction, high-rise building material hoisting, heavy industrial plant renovations, and municipal bridge infrastructure installations.

Common Variations

STC1000C7-1: The premium 51,500 kg gross-weight flagship platform. It is distinguished by an industry-leading 75.5-meter 7-section high-strength oval main boom paired with a 17.5-meter fixed jib to generate a massive maximum lifting moment of 4,057 kN·m.
STC1000C7-8: An alternative regional version optimized with specific axle-load allocations and distinct sub-confluence hydraulic valving matrices, tailored for high-frequency urban rental fleets requiring simplified rapid configuration.
STC1000S: A specialized compact variation built around a 56-meter boom profile. It trades the extreme vertical reach of the 7-section architecture for higher short-radius brute lifting capacities in congested inner-city highway lanes.

Core Advantages & Features

Ultra-Long Oval Boom Profile: Outfitted with a premium 75.5-meter telescoping arm constructed from ultra-high-tensile steel plate. The specialized oval cross-section dramatically reduces deadweight while boosting cross-sectional stiffness, allowing operators to reach over 30 stories with minimal boom deflection.
High-Capacity Intelligent Ballast: Supports a heavy-duty 41-ton standard counterweight configuration (expandable up to 46 tons). This modular ballast logic combines with an ultra-wide outrigger span to provide rock-solid anti-tipping boundaries during long-radius side-hoisting tasks.
High-Output Eco-Efficient Drivetrain: Driven by a robust 294 kW Weichai WP12 engine coupled with a high-torque 12-speed manual gearbox. This powertrain easily generates a top road speed of 90 km/h and an outstanding 43% gradeability threshold across rough jobsite entrances.
Closed-Loop Precision Hydraulics: Features an advanced hydraulic system blending a closed-loop proportional variable displacement piston pump with intelligent CAN-BUS controllers. This direct control architecture completely smooths out multi-function compound movement while maximizing winching line speeds.
