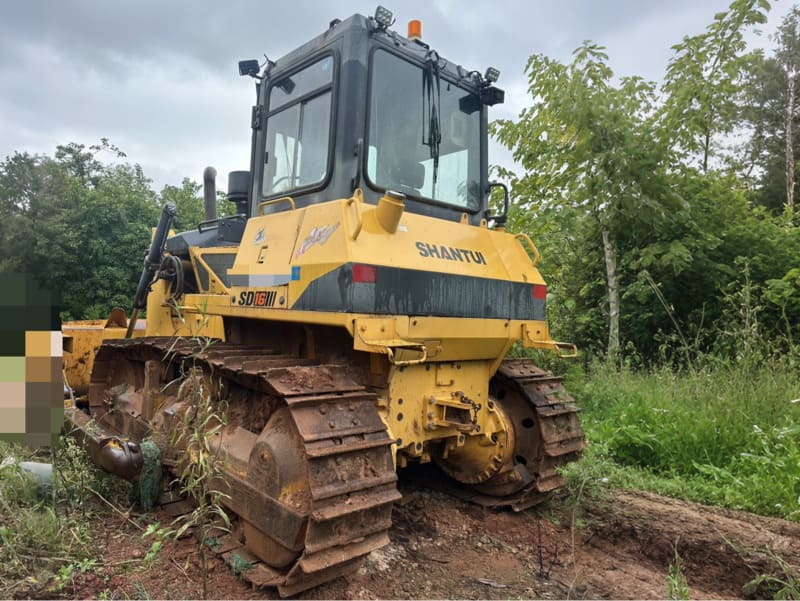

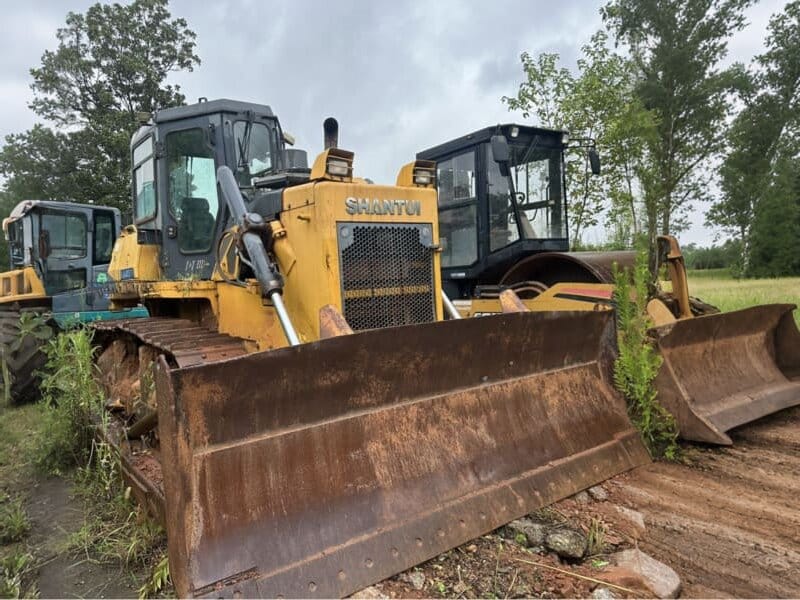

Used Bulldozer SHANTUI SD16

Shantui SD16 Crawler Bulldozer is a 160-horsepower-class medium hydraulic bulldozer engineered to provide massive drawbar pull, excellent grading accuracy, and rugged field reliability. It is widely deployed across medium-scale earthmoving projects, highway construction, mining, agricultural land reclamation, and severe waste management environments.

Common Variations

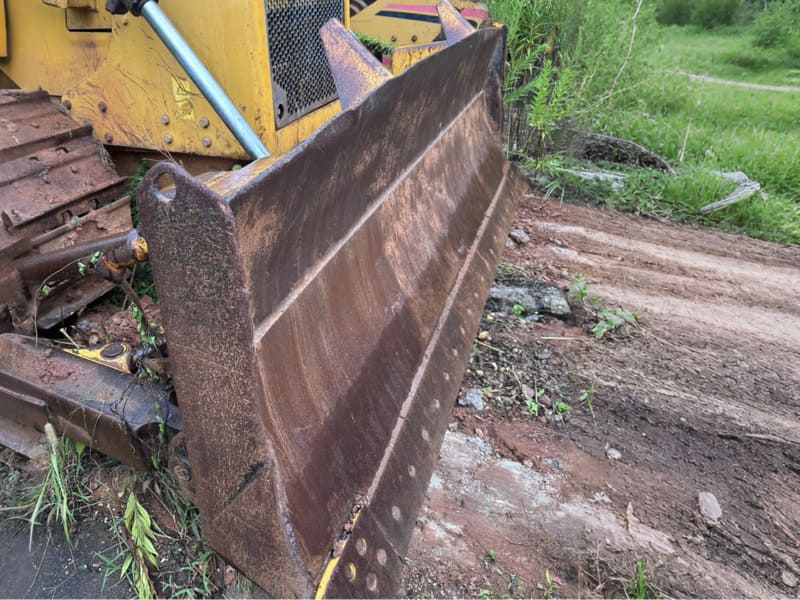

SD16: The core 16,400 kg baseline multi-purpose production model. It pairs a 120 kW to 131 kW Weichai or Shangchai engine with a 3.2 to 4.5 m³ straight-tilt blade, serving as the standard workhorse for universal earthmoving.
SD16L: A specialized Swamp (LGP) variation designed with an extended frame layout and ultra-wide 1,100 mm triangular track shoes, lowering ground pressure to 0.027 MPa for unstable wetlands and marsh operations.
SD16F: A robust Forestry/Logging variant configured with a heavy-duty Roll-Over Protective Structure (ROPS) canopy, an integrated rear logging winch, and reinforced underside guarding for navigating dense wooded terrain.

Core Advantages & Features

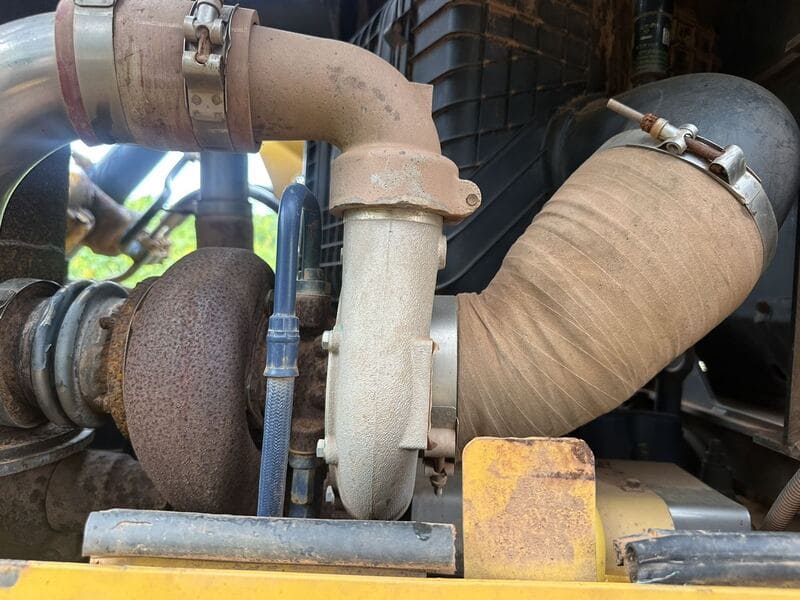

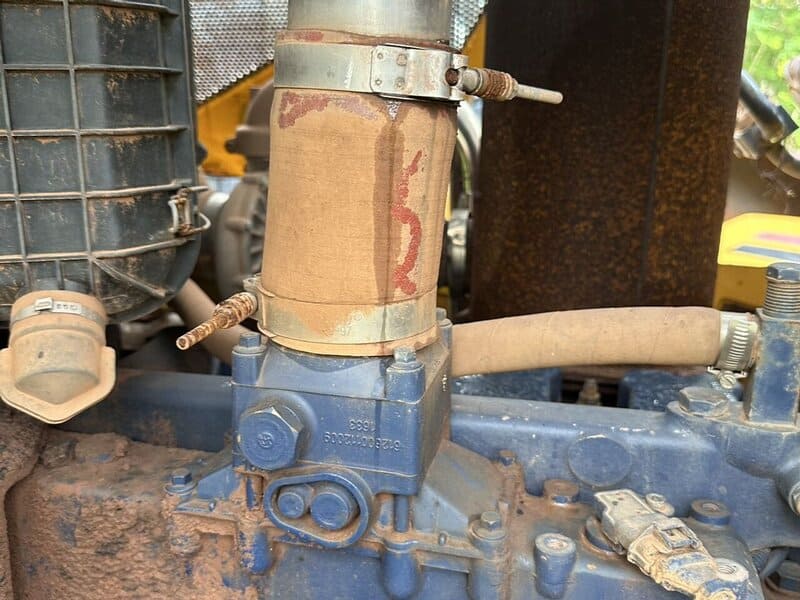

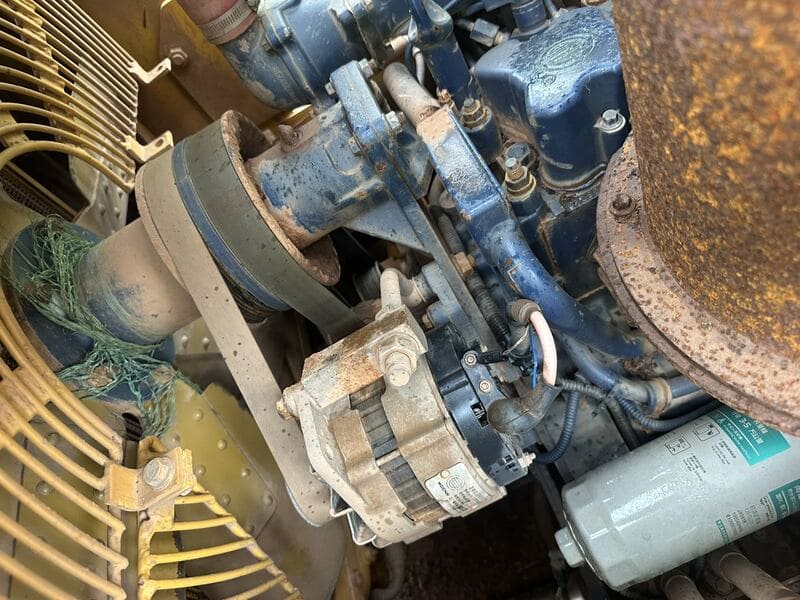

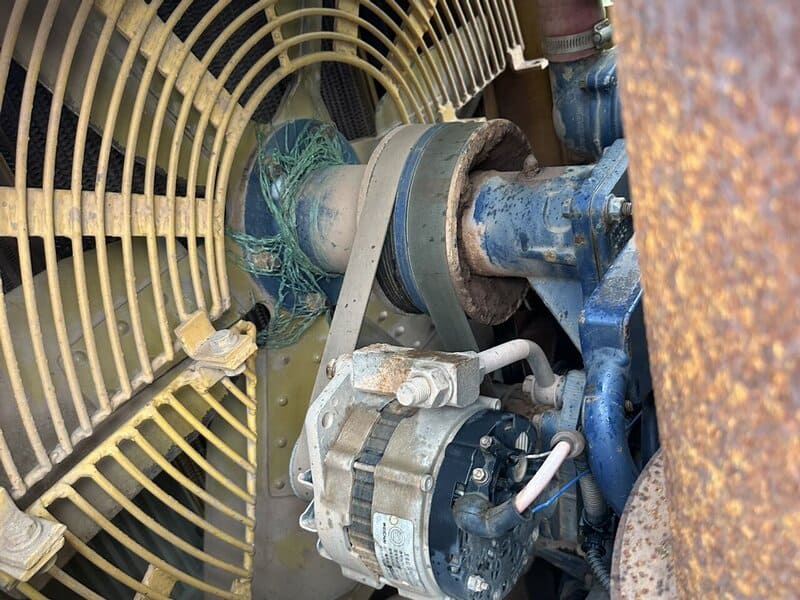

High-Torque Heavy-Duty Powertrain: Driven by a 9.7L inline 6-cylinder turbocharged engine producing a massive peak torque of up to 830 N·m. This high-displacement matching delivers consistent pushing forces at low speeds, reducing total fuel consumption during deep cutting.
Torqflow Power-Shift Transmission: Outfitted with Shantui’s time-tested, planetary gear power-shift transmission utilizing forced lubrication. The 3-forward and 3-reverse speed matrix dynamically buffers sudden shock loads, securing a massive 147 kN drawbar pull.

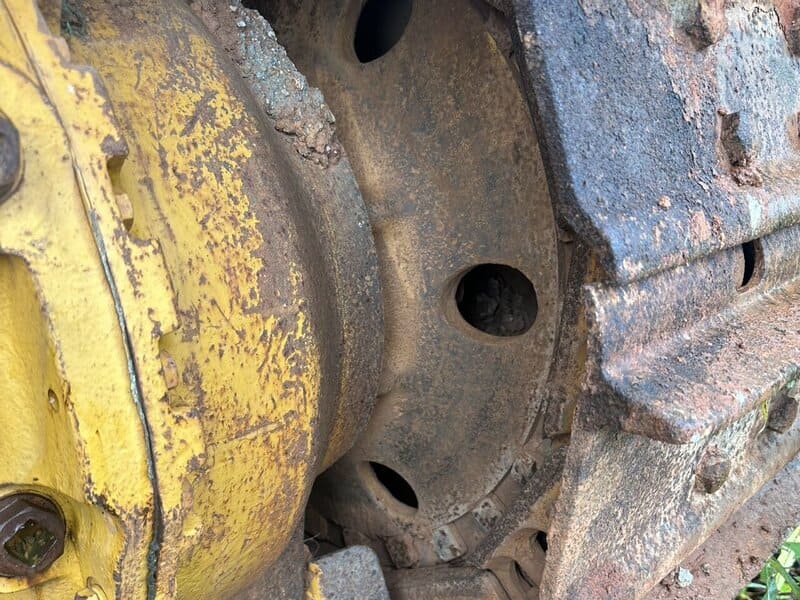

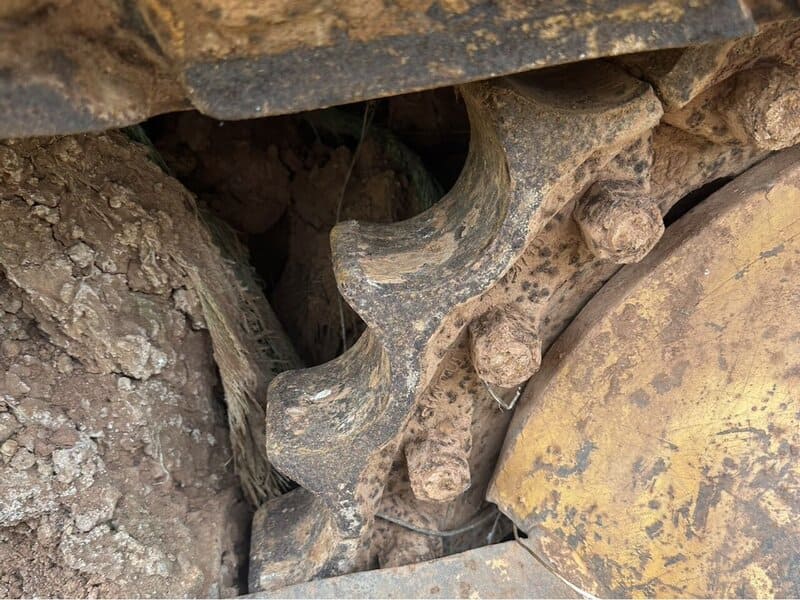

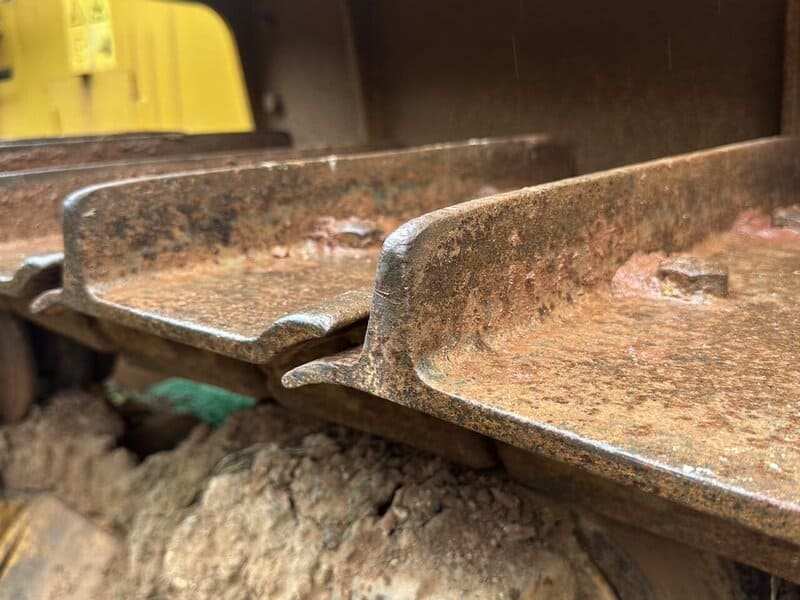

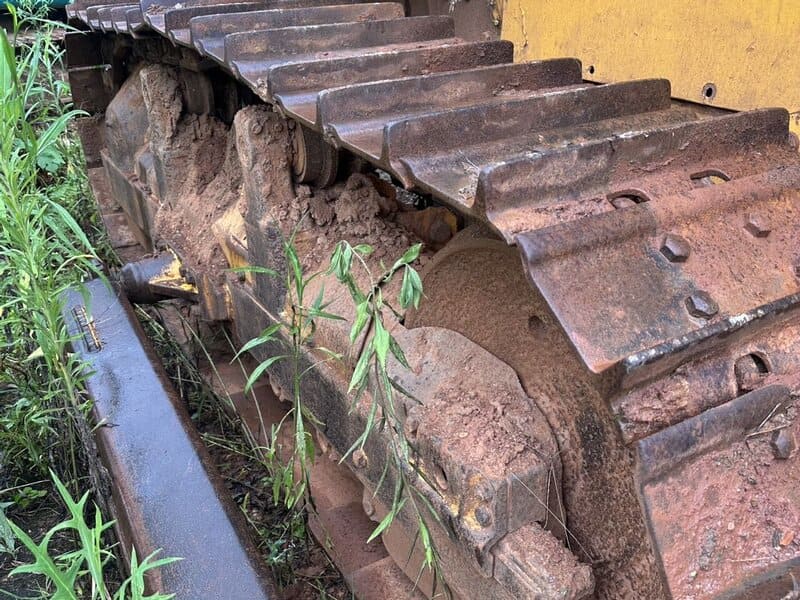

High-Passability Durable Undercarriage: Built around a modular splayed-beam suspension system matched with an integrated 2,430 mm track ground-contact length. The high 400 mm ground clearance and hardened track rollers prevent rock packing to maintain constant machine tracking over rocky soils.

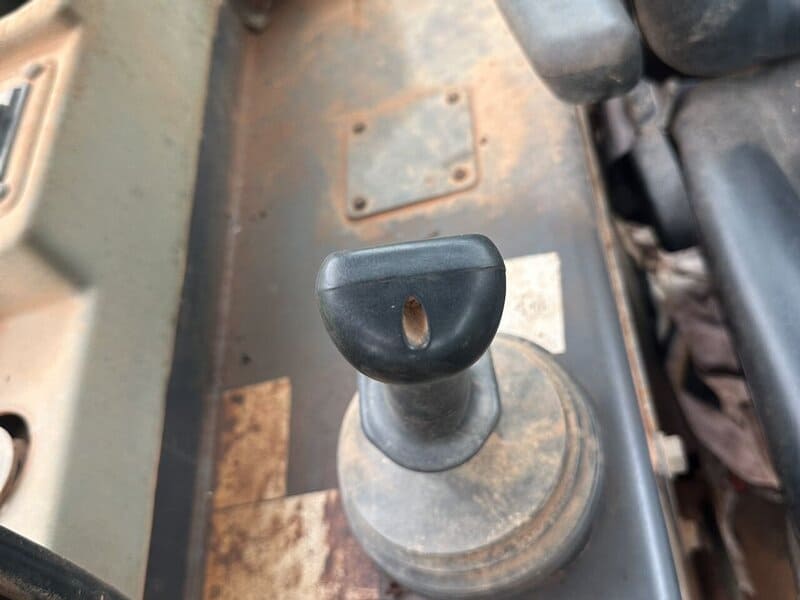

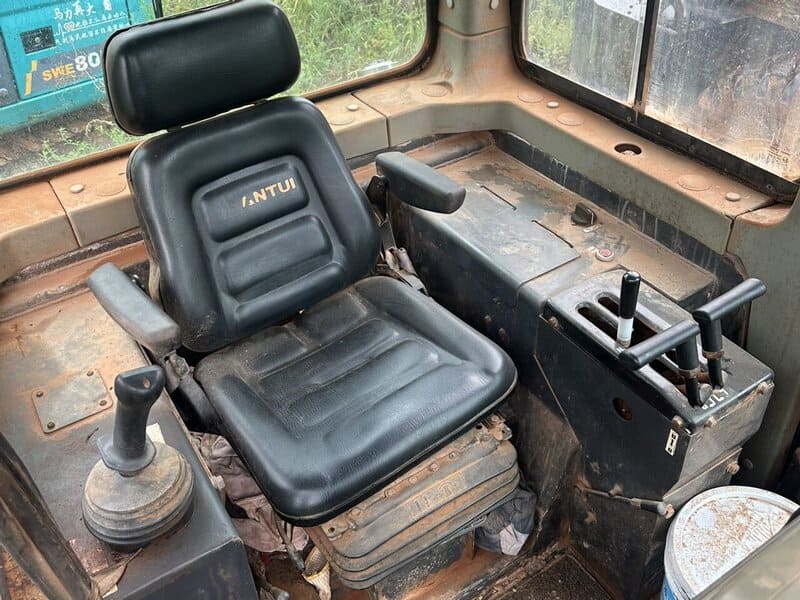

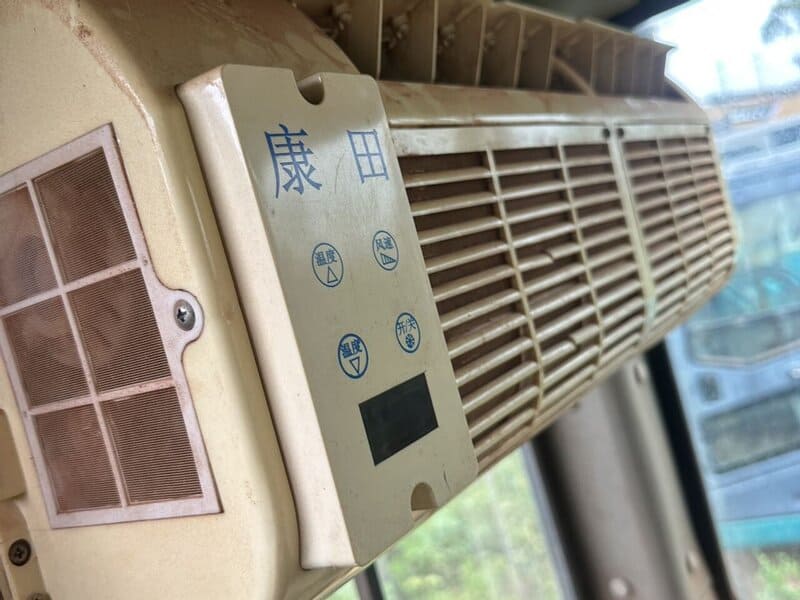

Hexahedral Ergonomic Cab: Features an isolated, high-strength hexahedral operator workstation engineered to maximize three-dimensional visibility over the blade corners. The pressurized workspace integrates low-effort hydrostatic steering levers, a multi-vent climate control system, and a centralized instrument cluster.
